我们的元件插座可以适合几乎所有的半导体封装，可有效避免：高温焊接、静电释放、清洁溶液造成的损伤；不良焊点、断裂引起的接触不良；更换时产生物料损伤及人力成本；交货周期导致的流水线空置；焊接过热引发的噪声等。另有配合发热器件的带热沉型，不影响光机结构的超薄型等多类特种插座，详情请来电咨询。
| 图片 | 型号 | 端子类型 | 插入引脚直径 | 引脚数 | 插入力 | 拔出力 | 插入引脚高度 | 适用封装系列 | 适用封装 | 关联型号 | 可选项 | 反射率-P偏振 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

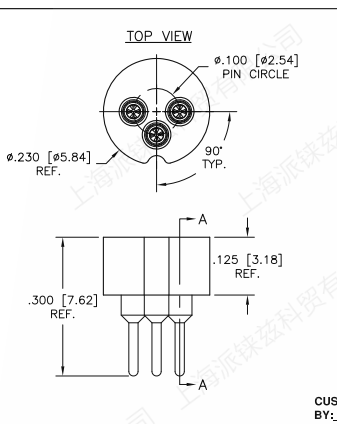

R100-SP03-04N-75S-R27-L14 | Thru Hole | Ø0.4572 mm | 3 | 9.0oz | 2.0oz | 3.94 mm | TO | - | - | ||
|

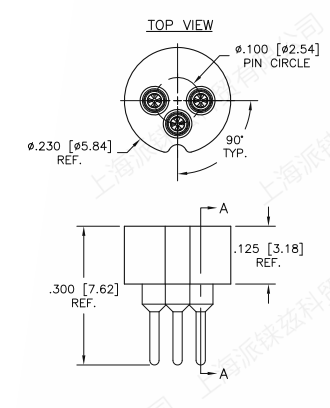

R530-0403-02N-440P55-R27-L14 | - | - | - | - | - | - | - | - | - | - | - |
.png)
|

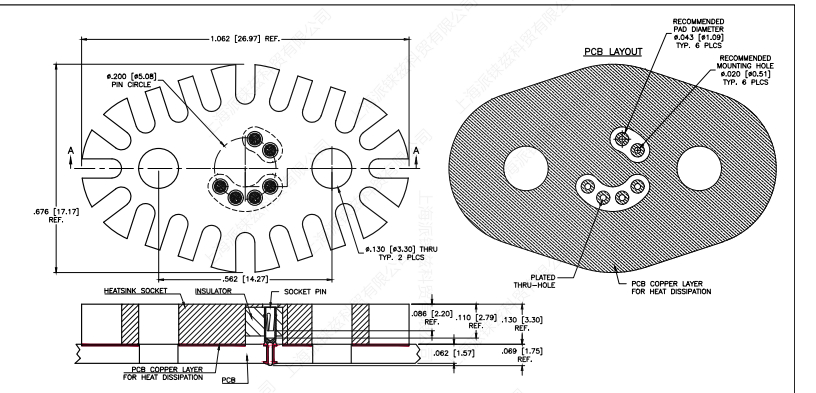

F200-1006-02-274K-R27-L14 (TH) | Thru Hole | Ø0.4572 mm | 6 | 1.24oz | 0.5oz | 2.79 mm | TO | Heat Sink | - | ||
|

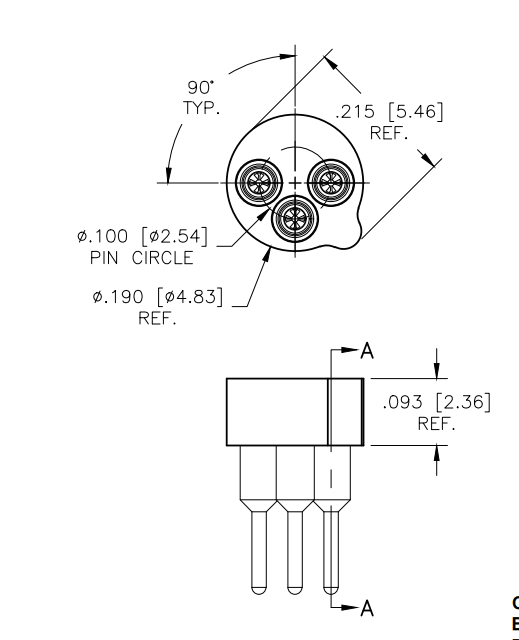

R080-0403-01N-284K-R27-L14 | - | - | - | - | - | - | - | - | - | - | - |
|
R100-0805-02N-C1-G10-L14 | - | - | - | - | - | - | - | - | - | - | - |
|

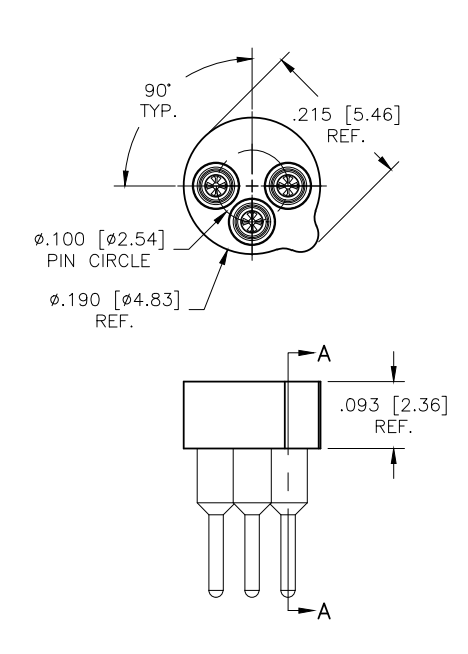

R100-0402-06T-443S-R27-L14 | - | - | - | - | - | - | - | - | - | - | - |
|
R100-0403-05T-443S-R27-L14 | Thru Hole | Ø0.4572 mm | 3 | 9.0oz | 2.0oz | 3.94m | TO | - | - | ||
.png)
|

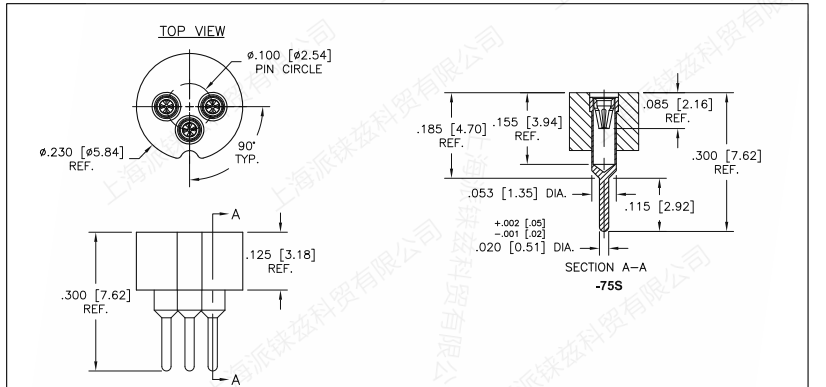

F400-SP12-02-01S-R27-L14 (TH) | - | - | - | - | - | - | - | - | - | - | - |
|

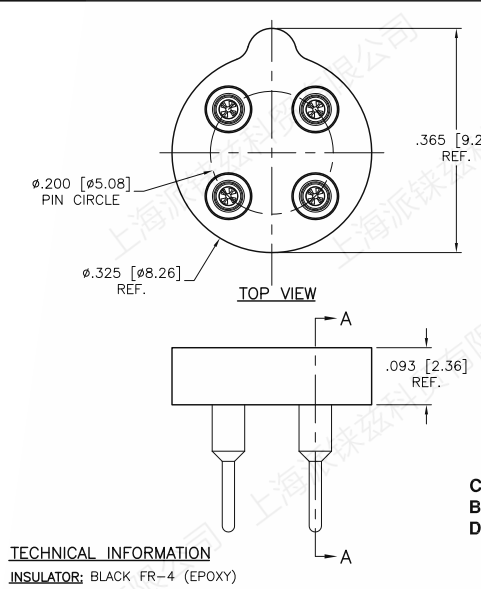

R200-0404-01T-01S-R27-L14 | Thru Hole | Ø0.4572 mm | 4 | 9.0oz | 2.0oz | 2.36 mm | TO | - | - | ||
| 10-18-04A-153-400T4-R27-L14 | Thru Hole | 0.2 … 0.36 mm | 157 | - | - | 2.24m | QIP | - | - | - | ||
| 10-26-15-478-274UM-R27-L14 | Thru Hole | 0.38 mm | 478 | 2.11oz | 0.53oz | 2.54 mm | QIP | - | - | - | ||
| R230-1010-03T-211S-R27-L14 | Thru Hole | Ø0.4 … 0.56 mm | 10 | 9.0oz | 2.0oz | 3.3 mm | TO | - | ULM760-01-PL-S05TTT | - | - | |
| R230-1010-03T-75S-R27-L14 | Thru Hole | Ø0.4 … 0.56 mm | 10 | 9.0oz | 2.0oz | 3.94 mm | TO | - | ULM760-01-PL-S05TTT | - | - |
