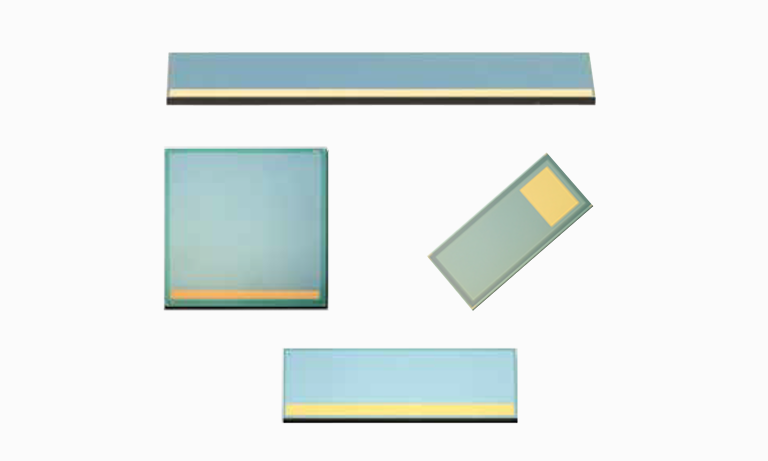

| 图片 |
型号 |
光敏尺寸 |
暗电流 |
上升沿时间 |
电容 |
封装 |
封装类型 |
引脚数 |
窗口 |
|
S-4CL |
1.7 × 2.8 mm
|
<20 nA@-5V
|
1.65 ns@-5V,50Ω
|
15 pF@-5V
|
Chip
|
Chip
|
2
|
-
|
|
S-4VL |
1.7 × 2.8 mm
|
<1 nA@-10mV
|
40.7 ns@0V,50Ω
|
370 pF@0V
|
Chip
|
Chip
|
2
|
-
|
|
S-10CL |
2.3 × 4.2 mm
|
<40 nA@-5V
|
3.3 ns@-5V,50Ω
|
30 pF@-5V
|
Chip
|
Chip
|
2
|
-
|
|
S-10VL |
2.3 × 4.2 mm
|
<1.25 nA@-10mV
|
82.5 ns@0V,50Ω
|
750 pF@0V
|
Chip
|
Chip
|
2
|
-
|
|
S-25VL |
5.1 × 5.1 mm
|
<2 nA@-10mV
|
231 ns@0V,50Ω
|
2100 pF@0V
|
Chip
|
Chip
|
2
|
-
|
|
S-25CL |
5.1 × 5.1 mm
|
<100 nA@-5V
|
10.45 ns@-5V,50Ω
|
95 pF@-5V
|
Chip
|
Chip
|
2
|
-
|
|
S-25CRL |
2.5 × 10.1 mm
|
<100 nA@-5V
|
10.45 ns@-5V,50Ω
|
95 pF@-5V
|
Chip
|
Chip
|
2
|
-
|
|
S-25VRL |
2.5 × 10.1 mm
|
<2 nA@-10mV
|
231 ns@0V,50Ω
|
2100 pF@0V
|
Chip
|
Chip
|
2
|
-
|
|
S-50CL |
2.5 × 20.3 mm
|
<300 nA@-5V
|
22 ns@-5V,50Ω
|
200 pF@-5V
|
Chip
|
Chip
|
2
|
-
|
|
S-50VL |
2.5 × 20.3 mm
|
<3.3 nA@-10mV
|
440 ns@0V,50Ω
|
4000 pF@0V
|
Chip
|
Chip
|
2
|
-
|
|
S-80CL |
4.1 × 20.1 mm
|
<500 nA@-5V
|
33 ns@-5V,50Ω
|
300 pF@-5V
|
Chip
|
Chip
|
2
|
-
|
|
S-80VL |
4.1 × 20.1 mm
|
<5 nA@-10mV
|
660 ns@0V,50Ω
|
6000 pF@0V
|
Chip
|
Chip
|
2
|
-
|
|
S-120CL |
4.5 × 23.5 mm
|
<800 nA@-5V
|
49.5 ns@-5V,50Ω
|
450 pF@-5V
|
Chip
|
Chip
|
2
|
-
|
|
S-120VL |
4.5 × 23.5 mm
|
<20 nA@-10mV
|
1100 ns@0V,50Ω
|
10000 pF@0V
|
Chip
|
Chip
|
2
|
-
|
|
S-100CL |
9.7 × 9.7 mm
|
<600 nA@-5V
|
41.25 ns@-5V,50Ω
|
375 pF@-5V
|
Chip
|
Chip
|
2
|
-
|
|
S-100VL |
9.7 × 9.7 mm
|
<10 nA@-10mV
|
935 ns@0V,50Ω
|
8500 pF@0V
|
Chip
|
Chip
|
2
|
-
|
|
S-200CL |
9.2 × 20.7 mm
|
<1200 nA@-5V
|
82.5 ns@-5V,50Ω
|
750 pF@-5V
|
Chip
|
Chip
|
2
|
-
|
|
S-200VL |
9.2 × 20.7 mm
|
<50 nA@-10mV
|
1870 ns@0V,50Ω
|
17000 pF@0V
|
Chip
|
Chip
|
2
|
-
|
|
|
PIN-18265 |
9.7 × 9.7 mm
|
10 nA@-10mV
|
-
|
8500 pF@0V
|
-
|
Chip
|
-
|
-
|
|
|
S-10C |
2.3 × 4.2 mm
|
<40 nA@-5V
|
3.3 ns@-5V,50Ω
|
30 pF@-5V
|
Chip
|
Chip
|
-
|
-
|
|
|
S-100C |
9.7 × 9.7 mm
|
<600 nA@-5V
|
41.25 ns@-5V,50Ω
|
375 pF@-5V
|
Chip
|
Chip
|
2
|
-
|
|
|
S-4C |
1.7 × 2.8 mm
|
<20 nA@-5V
|
1.65 ns@-5V,50Ω
|
15 pF@-5V
|
Chip
|
Chip
|
2
|
-
|
|
|
S-50V |
2.5 × 20.3 mm
|
<3.3 nA@-10mV
|
440 ns@0V,50Ω
|
4000 pF@0V
|
Chip
|
Chip
|
2
|
-
|
|
|
S-4V |
1.7 × 2.8 mm
|
<1 nA@-10mV
|
40.7 ns@0V,50Ω
|
370 pF@0V
|
Chip
|
Chip
|
2
|
-
|
|
|
S-25C |
5.1 × 5.1 mm
|
<100 nA@-5V
|
10.45 ns@-5V,50Ω
|
95 pF@-5V
|
Chip
|
Chip
|
2
|
-
|
备注：以上所有型号都有对应不带“L”的，“L”表示引脚
